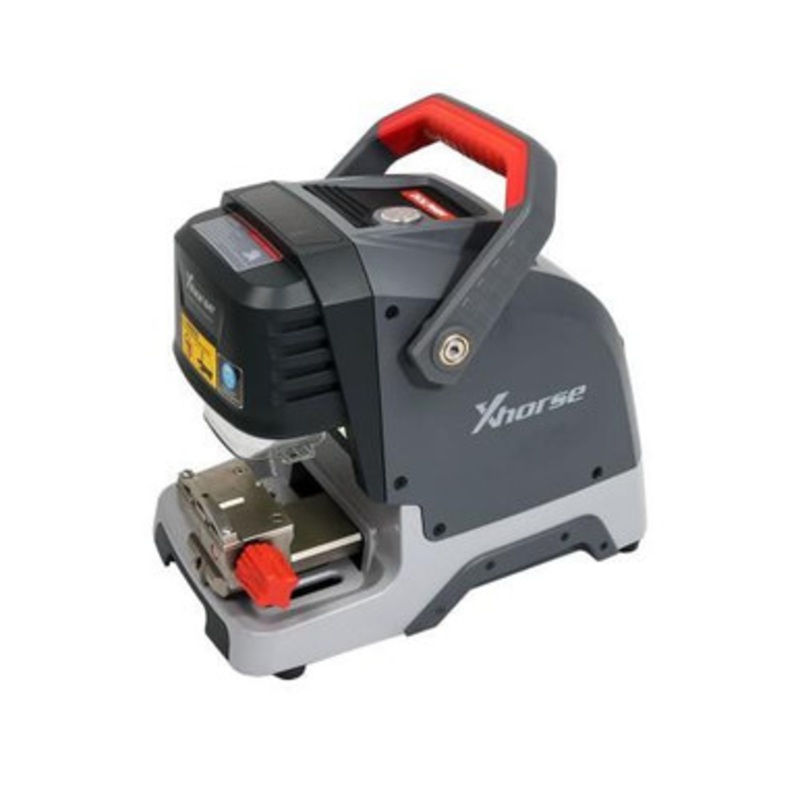

DOLPHIN XP005is the latest portable automatic key cutting machine with a built-in battery inside.

It has all the capabilities of Condor XC Mini.

Dolphin works on mobile phone application via bluetooth connection. There is no touchscreen, instead, you interface with the machine via the mobile phone or tablet.

M1/M2 Jawsincluded.

M3 Jaw – optional purchase.

PN XP0501EN
Specifications:

• Working temperature:-10~50
• Working Humidity:10%~90%
• Battery capacity:64.75w.h
• Standby power: 15W
• Motor Rotation Speed:10000-13000 RPM
• USB Port:USB2.0
• Machine Dimension:315x218x270mm
• Net Weight: 15KG
• Gross Weight: 18KG

POWER: 100W

POWER PARAMETER: 12-24V

MOTOR TORQUE: 0.15Nm

Features:

Precision Production:All aluminum body structure, Manufactured by Germany-made DMG CNC machineData Richness:Provide rich vehicle data, blank key data, the best tool of all key lost.Built-in Lithium Battery:Optimized lithium battery of well-known brand, stable and reliable, supportcutting under no power conditions.Clamps:Standard equipped two clamps M1 and M2, supports Sided, Track, Dimple and Tibbekeys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to FordFO21 & Citroen SX9 keys, M4 clamp is applicable to single-sided house-keys (duplication only).One year warrantyIntelligent Control:Provide powerful free App, support multi-language, support mobile phone,tablet computer and other intelligent terminal control, easy for operations.High Efficiency Cutting:Use American famous brush-less motor and screw rod, high efficiency andstability, create high precision cutting quality.Online Update:Provide free software upgrade service, software function and database.Accessories:
M1 Clamp- includedM2 Clamp– includedM3 Clamp (optional)

Xhorse Dolphin key cutting machine – Calibration process tutorial:

Downloads:

Please download and readXhorse Device(s) Update Instructions

Xhorse Upgrade Kit v1.3.6

Xhorse XP-005 Dolphin Drivers.rar

DOLPHIN XP-005 User Manual
